Sensimetrics Corporation

Features

Model S15 System Features

High-Quality Calibrated Audio
Flat Response Over 100Hz – 8 kHz Bandwidth
Output Levels in the Ear Canal up to 110 dB SPL
Sound Attenuation from Replaceable Comply Canal Tips
Custom Digital Equalization Filters
EQ Filtering 4.0 – Software for Windows® XP/Vista/7/8/10
MATLAB Functions for Loading Equalization Filters

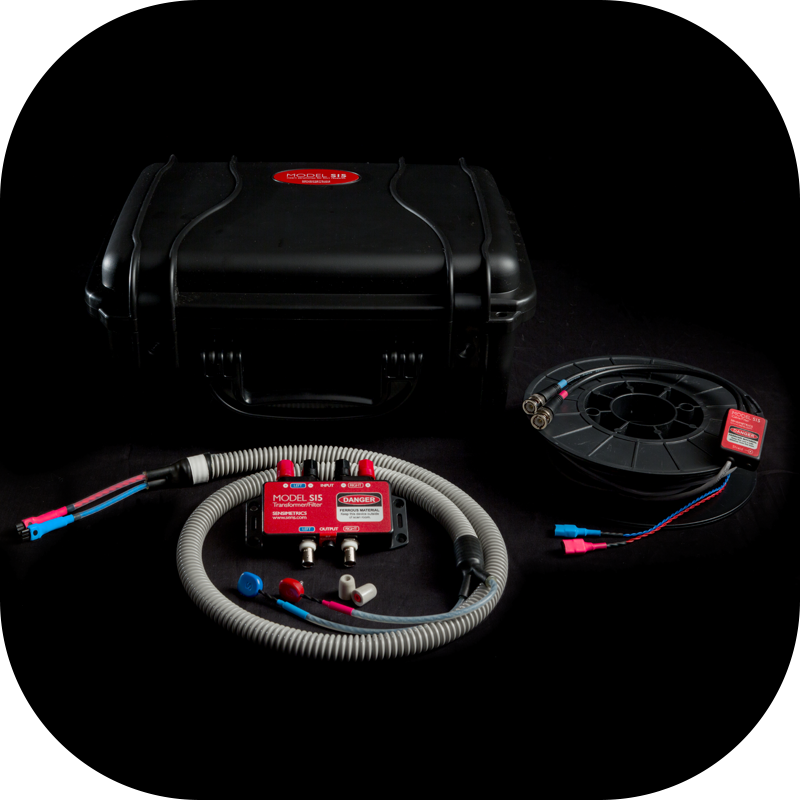

Model S15 System Includes

Binaural Earphones with 1 Meter Cables
9 Meter Cable
Small Transformer Box
Transformer Ground Cable
Custom Digital EQ Filters
EQ Filtering Software
High-Impact Carrying Case
6 pairs of Comply Foam Ear Canal Tips

Accessories

Replaceable Comply (TM) Foam Canal Tips – $325

Sensimetrics is an authorized reseller of Comply (TM) Foam Canal Tips.

Sensimetrics’ Model S15 was tested for safety using Comply’s military-grade canal tips. The tips conform to the ear canal to maintain an acoustic seal, deliver maximum noise reduction, and ensure sanitary conditions.

For more detailed specifications of Comply (TM) Foam Canal Tips, visit Comply’s product web site.

S14 BNC Penetration Panel Adaptor Cables

BNC Penetration Panel Adaptor Cables – $300

Allows “differential pass-through” of the headphone signal coming from the transformer box when used with grounded penetration panels. Converts the normal “single BNC per channel” connections to “two BNCs per channel” (thus stereo requires 4 BNC positions on each side of the panel). This optional configuration allows the user to maintain the balanced drive signal from the transformer. While this accessory is not usually needed, it may be helpful in certain situations when tracking down RF leakage or artifacts peculiar to a particular installation.

Shield Cable – $10

This accessory (formerly called the ‘Choke Grounding Cable’) enables a direct connection from the shield conductor of the long cable assembly to a user specified ground at the penetration panel. Such connection is not generally used, but it may be helpful in certain situations when tracking down RF leakage or artifacts peculiar to a particular installation.

Documentation

Please consult the following documents for important information about Model S15 Insert Earphones for fMRI Research:

S15 Use Instructions (PDF)

EQ Filtering Program Instructions (PDF)

MRI Insert Earphones - Technical Note on Attenuation (PDF)

Attenuation Provided by Insert Earphones (PDF)

Sample Frequency Response (PDF)

S15 Safety Information (PDF)

S15 Wiring Diagram (PDF)

FAQ

Q: Does the S15 come with a warranty?

A: The S15 earphone system comes with a one-year warranty.

Q: Is the S15 earphone system approved for use in a 7T and 9T scanner?

A: The S15 earphone system has been tested to be MR Conditional for fMRI in 7T and 9T scanners. Please see the Model S15 Safety Statement.

Q: Where can I get additional foam tips? Can I order them from Sensimetrics?

A: Sensimetrics is an authorized reseller of Comply (TM) Foam Canal Tips. You can buy them in our online store.

Q: What is the recommended method for inserting the earphones?

A: To insert each earphone, first compress the foam tip by rolling it between thumb and forefinger, narrowing its diameter. While continuing to roll it, screw it onto the post. Then quickly insert it into the ear. Hold it in the ear for about 10 seconds while the foam expands.

Q: Do you sell an fMRI-compatible active noise removal feature or attenuator with this device?

A: We do not sell any active noise reduction devices. We recommend hearing protector earmuffs on top of the S15 insert phones as an effective means of achieving added noise reduction (provided, of course, that they fit in your head coil). Search the web for ‘dielectric earmuffs’.

Q: Is there an example of the frequency response specs for the S15 earphone system?

A: Yes. Please see this example of an individual specification sheet provided with each S15 system.

Q: Is it necessary/recommended to use an amplifier? What sort of audio amplifier do I need?

A: You can generate weak signals without one, but an amplifier is needed to produce sound levels that are usually used in fMRI research. The requirements for the amplifier are very modest. The transformer/earphone combination will require no more than 3 watts per channel, which may be met by a large number of small audio amplifiers. Note that some amplifiers incorporate a loudness correction that effectively changes the frequency response along with overall gain as the volume is controlled.

The main criterion that should be met in choosing an amplifier for use with our system is that it avoids the use of any “digital,” “PCM,” “PWM,” or other high effiency topology, as they use and leak RF into the MRI environment. The chosen amplifier should be a good quality class A or class AB, (i.e., linear) unit. Additionally, although the S15 does not require high output power, we do not recommend so-called “headphone amps” as the output impedance of such amplifiers is usually far above 8 ohms. We have successfully used various amplifiers branded as “AudioSource” such as AMP100VS, AMP-100, Amp One/A, (available under various model designations and stated output powers but all of similar design). These amplifiers are available at Amazon for under $200. Similar amplifiers such as those branded “Russound” and “OSD Audio” are also suitable, as is any amplifier of linear topology, superficially indicated by the presence of a heavy power transformer instead of a lightweight switching power supply or wall adapter.

Q: I am using an analog/linear power amplifier with my S15, but I still get an artifact that goes away when the amplifier is disconnected. Do you have any suggestions?

A: Some analog amplifiers suffer from slight HF instabilities that can also introduce artifact-causing noise. Some such amplifiers can become unstable due to MRI signals accidentally coupled to the amplifier. Although this is relatively rare with modern high quality units, specific testing of the output for out-of-AF band emissions during scanning could reveal a problem. Adding additional filtering to the amplifier (input, output, power) could solve the problem, or an alternate amplifier could be part of the troubleshooting process.

Q: Do you have any official designation that the S15 earphones are MR safe?

A: The S15 is tested to be MR Conditional (according to ASTM labeling). The limits for safe use are stated in the Model S15 Safety Statement.

Q: How much attenuation of external sounds do the S15 insert earphones provide?

A: An S15 earphone inserted in a measurement device with no leaks achieves the same level of attenuation as a foam plug. Please see the Technical Note on Attenuation for more information.

Q: What type of transducer is used in the S15 earphones?

A: The earphones are piezoelectric. They contain a 12-mm disc of piezoelectric material to which a thin brass disc is bonded.

Q: What conductor material is used in the leads in the earphone cable and in the 9-meter cable?

A: The conductors are all twisted-pair copper, which is non-magnetic.

Q: How do I load the EQ filters into Matlab?

A: The filters are stored as double precision floats in a binary file. To load a filter from a file named EQF_1234L.bin, do these commands:

fid = fopen(‘EQF_1234L.bin’);
h = fread(fid, inf, ‘double’);
fclose(fid);

The filter will be in variable h.

Q: The EQ Filtering software is crashing or is not working correctly. Is there a solution?

A: Yes. The first step is to visit the download page to ensure you have the most recent version of EQ Filtering installed. (It’s Version 2.2.)

If EQ Filtering Version 2.2 still crashes or hangs, the problem may be due to incompatible headers in your .WAV files. To address this problem, try either of these two solutions:

1) Matlab. If you have Matlab you can simply read in the problematic .WAV files and write them out again, using the audioread and audiowrite commands. This process will create .WAV files with headers that are compatible with EQ Filtering.

2) SoX Sound eXchange. The second solution for .WAV files that do not work with EQ Filtering is a free utility called SoX, a command line application that reformats the header of .WAV files to ensure compatibility with EQ Filtering 2.2. The syntax is:

sox -r 44.1k inputfile.wav outputfile.wav

The “-r 44.1k” overrides the header of the input file. Be sure to set the proper sampling rate in the command line entry that matches the sampling rate of the original file. (For example, a 48K file would have the syntax:

sox -r 48k inputfile.wav outputfile.wav

Q: While installing EQ Filtering on Windows 7/8/10, I get the error “Unhandled exception has occurred in this application.” Does EQ Filtering work with 32bit and 64bit Windows 7/8/10?

A: Yes. All users are encouraged to download and install version 2.2 of the EQ Filtering software (available in 32bit and 64bit versions) from the download page.

Q: After installing EQ Filtering, I get the error “Error 1721. There is a problem with this Windows Installer package. A program required for this install to complete could not be run.” Was the installation successful?

A: Yes. Despite this error, EQ Filtering was installed successfully, and you can use the program as you would expect.

Q: What is the EQ filtering software exactly doing? Is it similar to an external/analog EQ system?

A: The EQ Filtering software uses digital filters custom-matched for your earphones to compensate for (remove) resonances in the frequency responses of the earphones. The compensation is applied to digital signals that are stored on your computer.

Q: We are seeing “zipper” and other image artifacts. Can you suggest steps for addressing this RF interference?

A: Although the majority of installations of S15 systems work with no further filtering, it is sometimes beneficial to connect the shield of the long cable to ground (using the grounding cable accessory). This is especially true when using a waveguide entrance to the scan room. If further RF filtering is necessary, insert a pair of inline low-pass filters, such as those sold by Mini-Circuits (Brooklyn NY, for example type: blp-70+) at the BNC connections of the penetration panel, (or at the BNC outputs of the transformer box in the case of waveguide-only installations). Such inline filters, having ca. -40dB at the scanner frequencies, plus grounding at the panel (or waveguide), have proven to solve RFI problems regardless of the exact cause.

Q: Our scanner room is very spacious, and the distance from the scanner to the penetration panel is longer than the 9 meter “long gray cable” that comes with S14 and S15. Do you provide extensions? Should any added extension be installed before or after the small “filter box” where the BNC leads emerge?

A: Our MRI earphone systems are designed to strike a balance between avoiding the creation of an unintentional antenna effect and minimizing deployment of an impractically large number of filters along each cable. In part, this is achieved by using the twisted pair balanced cable nearer to the scanner.

It is not recommended to try to extend the long gray cable assembly before the small square filter box where the BNC leads emerge, and doing so will void the warranty. Additionally, each installation may have unique characteristics that prevent fine tuning from being a one-size-fits-all prospect. The ultimate fine tuning must be done by the engineer or technician in charge of the site.

With that in mind, we have had success with a relatively simple solution that is worth trying if you find yourself needing more length to reach the panel or waveguide. Purchase 50 ohm rg-58 patch cables of the desired length (be sure they are of highest quality and contain good percentage of shielding coverage, and a combination of braid and foil as the shield). Make note of the required gender at each end (the BNC’s on our product are male and thus plug into female, the penetration panel is almost universally female thus requiring a male on that side of the extension. If you use extension patch cables with males on both ends you will need to purchase gender changers, as well, to mate male to male on one end of long gray cable).

Even the best of coax extension cables are not ideally shielded especially in terms of any osciallating magnetic field that may be present at the far end of the scan room. We recommend inserting inline low pass filters such as the blp-70-75+ low pass filter from MiniCircuits (or any filters that pass audio frequencies but have a lossy stoppand effective around the larmor frequency of the scanner) in various places as needed.

For example, one might deploy three (times two for stereo) along each extension: at the start, at the end, and if you span the extension distance using two cables for each channel instead of in one single span, you will be able to also put one in the middle of the extension. This is almost a worst case scenario, as often the filtering that already exists in the transformer box at the panel end, and the filter in the small box at the end of the “long gray wire”, provide enough attenuation.

This is especially true for the S15 product, which includes improved filtering over that of the S14 product. It is preferable to assemble these connectors, cables, filters, outside of the scan room as the connector hardware may exhibit some attraction to the bore. Bring the assembled extension cable into the room close to the penetration panel and affix it there by immediately plugging in the BNCs. In this way you will not be tempted to make a mistake such as placing the hardware on the patient bed.

Downloads

EQ Filtering 4.0 (64bit) – Windows® XP/Vista/7/8/10 – March 2021

EQ Filtering 4.0 Instructions (PDF) – March 2021

Notes: All users are encouraged to download and install EQ Filtering version 4.0. Please uninstall any earlier versions of EQ Filtering before running this installer. Windows® XP/Vista/7/8/10 users, after downloading, please right-click the setup file and click “Install as Administrator” or install with UAC (User Account Control) disabled.

Matlab Functions for Loading S15 Filters – October 2022

For 32-bit or legacy support, existing users may continue to use EQ Filtering version 2.2 (links below).

EQ Filtering 2.2 (32bit) – Windows® XP/Vista/7/8/10 – July 16, 2012

EQ Filtering 2.2 (64bit) – Windows® XP/Vista/7/8/10 – July 16, 2012
